Understanding Progressive Cavity Pumps: Easy Answers to Common Questions

Progressive cavity (PC) pumps are a staple in industries where reliability, precision, and gentle handling of fluids are essential. Whether you're in wastewater treatment, food production, agriculture, or manufacturing, understanding how these pumps work and what sets high-performance models apart can help you make better decisions and get more from your equipment.

This article answers common questions about PC pumps in clear, practical terms, with examples from Wangen’s engineering innovations to illustrate how modern designs solve real-world challenges.

Progressive Cavity Pumps at a Glance

A progressive cavity (PC) pump is a positive displacement pump that moves fluid through sealed cavities formed by a helical rotor turning inside a stator. It gives steady, low-pulsation flow and handles viscous, abrasive and shear-sensitive fluids well. PC pumps are sensitive to speed rather than pressure, with hard-wearing rotors, sealed joints and modular parts, generally last longer and cost less to maintain.

What is a Progressive Cavity Pump?

A progressive cavity pump is a type of positive displacement pump. It uses a helical rotor turning inside a double-helix stator to create sealed cavities that gently and continuously transport fluid through the pump. This design allows for:

• Low-pulsation flow, ideal for metering and dosing.
• Self-priming operation.
• Gentle handling of viscous, abrasive, or shear-sensitive fluids, such as creams, gels, or dairy.
• Consistent flow, even with varying viscosities or solids content.
• Reliable performance in high-pressure applications.

These features make PC pumps ideal for applications where flow consistency and product integrity are critical. Browse our full range of progressive cavity pumps.

Where are Progressive Cavity Pumps Used?

PC pumps are used across a wide range of industries because of their ability to handle challenging fluids. Here are some common applications:

Why are Progressive Cavity Pumps so Effective?

PC pumps are effective because they move fluid in a slow, steady sequence of sealed cavities, which keeps flow consistent and protects the product, even with thick or abrasive media.

• Gentle on fluids
  The slow, steady movement of fluid through the cavities minimises shear, making PC pumps ideal for delicate materials like yoghurt, fruit pulp, or polymers. This makes them especially valuable in food, cosmetic, and pharmaceutical applications where product integrity is critical.
• Handles viscous and abrasive media
  PC pumps can move thick sludges, pastes, and even fluids with high solids content, up to 45% in some cases, without clogging or losing flow consistency. Their ability to maintain flow regardless of viscosity makes them a go-to solution for challenging materials.
• Self-priming and suction capable
  They can draw fluid from a dry start or lift from below the pump, making them versatile in layout and installation. This is particularly useful in mobile or remote setups, such as agricultural or field-based systems.
• Accurate dosing
  Because flow is directly proportional to speed, PC pumps are excellent for metering and dosing applications. This precision is maintained even with variable viscosities or intermittent flow demands.
• Performs reliably at high pressures
  Capable of handling high-pressure applications in multi-stage configurations. This makes them suitable for demanding tasks such as oilfield injection, high-pressure chemical transfer, and dewatered sludge pumping. Their ability to maintain consistent flow under pressure, without pulsation, gives them an edge over many other positive displacement pump types.



What are the Limitations of Progressive Cavity Pumps?

The main limitations of progressive cavity pumps are wear on the rotor, stator and joints, sensitivity to high running speeds, and longer maintenance times on traditional designs. Material choice, joint design and correct sizing all go a long way towards reducing them.

• Wear and tear (depending on brand)
  Progressive cavity pumps rely on continuous contact between the rotor and stator, which naturally leads to wear over time - especially when handling abrasive, fibrous, or chemically aggressive media, or running at high rpm. However, the materials and design of these components can significantly influence how quickly that wear occurs.
• Rotor and stator materials matter
  The rotor is typically made from hardened steel or coated with wear-resistant materials, while the stator is an elastomer sleeve bonded to a metal tube. The choice of materials affects not only chemical compatibility but also resistance to abrasion and thermal degradation.

• Wangen uses hardened steel rotors for non-corrosive, abrasive applications, which are more durable than standard chrome-plated rotors that can chip and degrade over time.

• Mono (NOV) commonly uses chrome-plated rotors, which are effective in many applications but more prone to flaking under abrasive conditions, leading to premature stator damage
• Netzsch offers a range of rotor/stator geometries and materials, including stainless steel and tool steel rotors, and elastomers like NBR, EPDM, and FKM, tailored to specific applications
• Matching the right rotor/stator combination to the fluid being pumped is essential for minimising wear and extending service life.

• Joint design is critical to longevity
  The joint assembly, which connects the drive shaft to the rotor, is another key wear point. Many PC pumps use pin joints, which are simple but vulnerable to wear under high torque or when handling fibrous materials.

  Wangen’s encapsulated cardan joint is a notable advancement. It features needle roller bearings and a protective sleeve, designed to handle radial and thrust loads while preventing media ingress. This sealed, lubricated design significantly reduces wear and extends service life - especially in abrasive or fibrous applications.

  In contrast, pin joints (as used in many Mono pumps) are more exposed and rely on bushings that wear faster, often requiring more frequent maintenance and being more susceptible to misalignment and blockages.



• Speed sensitivity and pressure considerations
  While progressive cavity pumps are often associated with low to medium pressure applications, they are fully capable of handling high-pressure duties, especially when properly configured. In fact, modern PC pumps can achieve pressures up to 240 bar (3,480 psi) in specialised configurations.

  The misconception around pressure limitations often stems from confusion with pump speed. PC pumps are sensitive to high rotational speeds, not pressure per se. Running a PC pump too fast can lead to:

• Excessive heat generation.

• Elastomer degradation in the stator.

• Accelerated wear of the rotor-stator interface.
• In fact, doubling the pump speed can increase wear by a factor of four, due to the exponential relationship between speed and frictional forces.
• This is why high-performance PC pumps are designed to operate at significantly lower RPMs - often less than half the speed of comparable models. For instance, while a standard PC pump might run at 300 to 400 RPM, a Wangen pump may operate efficiently at 120 to 180 RPM. This lower-speed operation:

• Reduces wear and heat.

• Extends service life.

• Improves energy efficiency.

• Enhances reliability in abrasive or shear-sensitive applications.

PC pumps are, therefore, highly capable of generating high pressures, but they must be sized and operated correctly. The key is not avoiding pressure, but managing speed and material compatibility to ensure long-term performance.

Are Progressive Cavity Pumps Difficult to Maintain?

Traditional designs can be, but modern modular PC pumps, such as the Wangen, are much quicker to service.

Traditional PC pumps often require full disassembly to replace a stator, rotor, or seal - especially when installed in-line with hard piping. This can lead to extended downtime, increased labour costs, and more complex maintenance planning.

However, modern pump designs have evolved to address these challenges. Wangen’s modular construction is a prime example. Their pumps are engineered with serviceability in mind, allowing for easier access to key components like joints, seals, and stators. This modularity means that individual parts can be replaced or upgraded without disturbing the entire pump assembly.

For instance, while the X-LIFT system offers inline rotor and stator replacement on select models, Wangen’s standard designs benefit from tool-free access points, cartridge seals, and standardised components that simplify maintenance across their product range.

This approach not only reduces downtime but also makes it easier to adapt pumps to changing process requirements - whether that means swapping out a rotor for a different flow rate or upgrading to a more wear-resistant stator material.

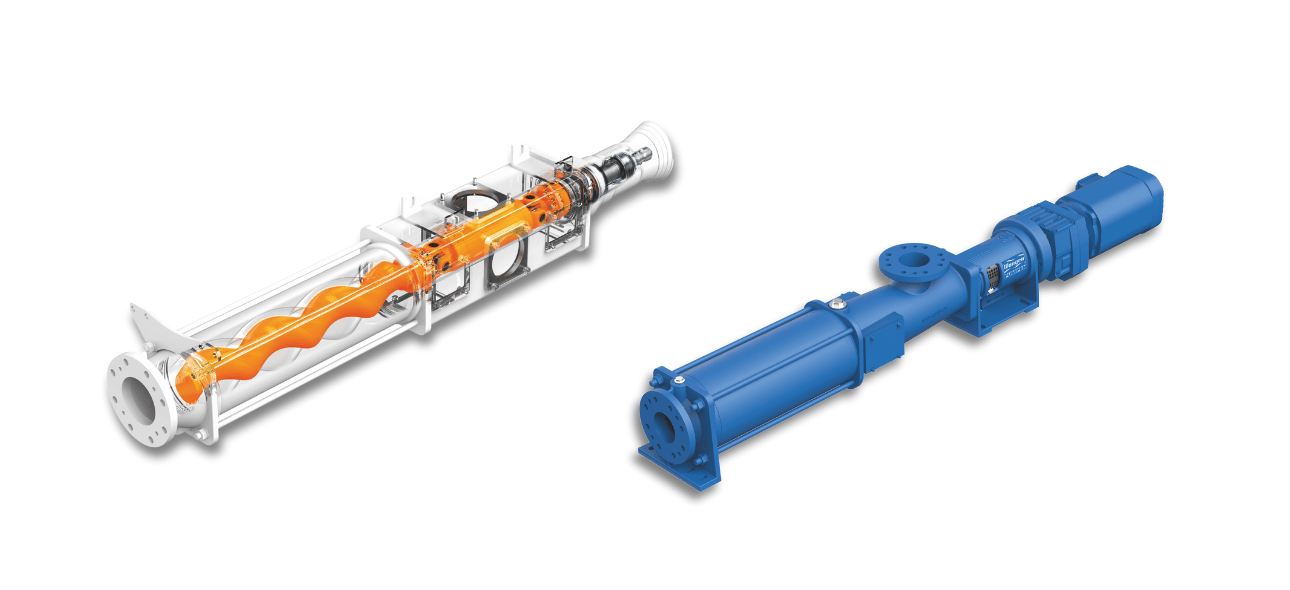

Cutaway of a PTO Wangen Progressive Cavity Pump and a Wangen Progressive Cavity Pump.

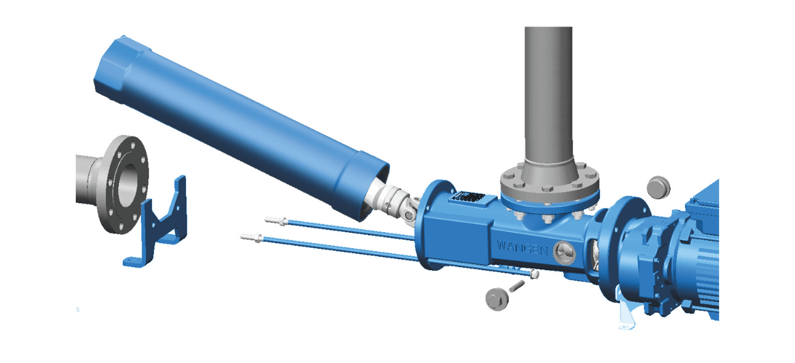

Modular components like Wangen’s Mechanical Seal or Encased Cardan Joint, and Wangen’s X-Lift design, reduce maintenance costs and downtime.

How Can You Optimise PC Pump Performance?

• Run at lower speeds for abrasive or viscous fluids to reduce wear.

• Use VSDs (variable speed drives) to fine-tune flow and reduce energy use.

• Inspect joints and seals regularly, they’re often the first to fail.
• Choose the right elastomer for your fluid to avoid chemical degradation.
• Look for modular designs that simplify maintenance and reduce downtime.



Final Thoughts

Progressive cavity pumps’ ability to handle tough fluids with precision and care makes them indispensable in many industries. By understanding how they work - and what to look for in a high-quality model - you can make smarter choices, reduce downtime, and get more value from your equipment.

Want to dive deeper into how different PC pump brands compare? Check out our Wangen vs Mono comparison blog.
