Fuel & Oil Pumps

Trusted brands, reliable advice

From fuel transfer to lubrication, hydraulic systems to waste oil recovery—whatever your application, we’ve got the right pump for the job. Prime Fluid Management supplies a full range of high-quality fuel and oil pumps from trusted brands like GVR, Varisco, Wangen, Pompe Travaini, SIHi, and Caffini. Whether you need precision metering, high-flow transfer, or reliable heavy-duty performance, we’ll help you find the best-fit solution to keep your operations running smoothly.

Internal Gear Pumps

Precision performance and efficiency

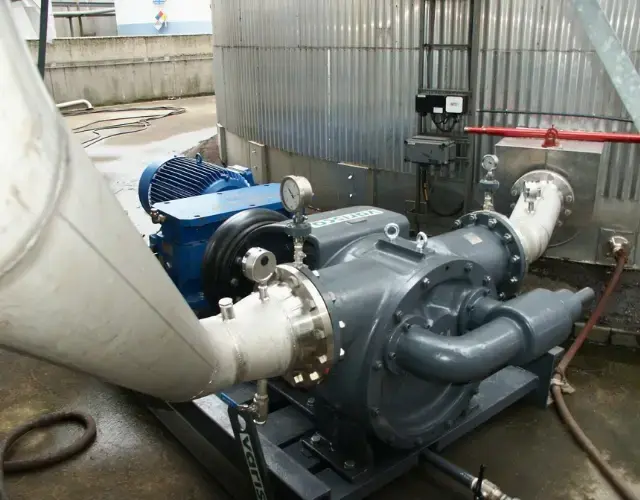

Varisco is renowned for its reliable, high-performance industrial pumping solutions. Their V-Series internal gear pumps deliver efficient, smooth handling of fuels, oils, and high-viscosity fluids.

Self-priming & reversible – handling suction lift and bidirectional flow.
High-viscosity capability – heavy fuels, lubricants, and bitumen.
Precision & efficiency – smooth, pulse-free flow with minimal shear.

Hot Oil End-Suction Pumps

Pumps that Handle the Heat

Ensuring safe, efficient heat transfer while maintaining fluid integrity is critical when handling thermal oils at high temperatures. We supply Pompe Travaini and Sihi hot oil pumps for their maintenance-friendly design and dependability. Both brands ensure:

High-temperature resilience (up to 350°C).
Reliable heat transfer (consistent flow in process heating applications).
Specifically designed to handle mineral and synthetic heat transfer oils.
Durable construction (designed for ongoing operation).

Overview of our Fuel & Oil Pumps

Caffini Electric Diaphragm Pumps

Designed for high flow, low pressure situations where transfer of thick slurries is required.

Size: 50mm - 152mm
Max Flow: 830L/min
Max Head: 15m
Max Solids: 60mm

View brochure

Caffini Petrol Diaphragm Pumps

Designed for high flow, low pressure situations where transfer of thick slurries is required.

Size: 50mm - 102mm
Max flow: 520L/min
Max head: 15m
Max Solids: 60mm

View brochure

GVR External Gear

Positive-displacement pumps that transfer medium-high viscosity fluids with minimal lubricating properties and no suspended solids.

Max flow: 800L/min
Max pressure: 25bar
Max viscosity: 20,000 cSt
Material : cast iron, PTFE bronze, 316 s/s

View All

Side Channel Pumps

Self-priming, multi-stage pumps offering low NPSH for medium-to-high-pressure applications for fluids with high gas content.

Max flow: 35m3/hr
Max pressure: 350m
Max temp: 180C

View All

Wangen Self-Priming PC Pumps

Wangen's KL-S, KB-S and KB22S self-priming PC pumps convey high viscous media up to 200,000mPA-s with or without solids. The KB22S is designed specifically for dosing.

Max Flow: 560 m3/hr
Max Pressure: 48 bar
Materials: S/steel, cast iron

View Brochure

SIHI Hot Oil End Suction

Horizontal single-stage pumps for mineral or synthetic heat transfer oils up to 350°C. Suitable for positive and negative suction pressure installations, they feature a back pull-out design for maintenance without disturbing pipework.

Max temp: 350°C
Max flow: 1000 m³/h
Max head: 95 m

View datasheet

Varisco Internal Gear Pumps

Varisco V-Series volumetric internal gear positive displacement rotary pumps manage clean fluids with high viscosity where chemical-physical alteration must be avoided.

Max capacity: 240m3/h
Max pressure: 16 bar
Ports: 40-200mm
Std Set ups: bare shaft, base+joint, vertical

View Brochure

Pompe Travaini Hot Oil End Suction

TCD-Series monostage centrifugal pumps will handle thermal fluids up to 365 degrees without additional cooling systems. TCD/SP Series pumps are specifically designed for vegetable oils.

Max flow: 450 m3/hr
Max head: 150m
Max temp: 365 degrees
Material Options: Ductile Iron & AISI 316 S/Steel

View Datasheet

Varisco Self-Priming Centrifugal Pumps

Varisco J-Series pumps suit applications that require fast priming from demanding suction heights, and the ability to manage polluted, waste and abrasive fluids with suspended solids.

Max flow: 1200m3/hr
Max head: 110m
Max solids: 76mm
Self-priming 7.5m

View All

Industrial Pumps Servicing & Parts

Prime Fluid Management supplies genuine parts for our pump brands, holding stock of common wear parts in New Zealand.

Genuine parts
Stock held in NZ
Maintenance advice
Servicing on request

Get in touch
