High Head Pumps for Elevated & Long-Distance Transfer

Fluid movement when the pressure is on.

High Head pumps can sustain significant pressure to move fluid over long distances or elevations. Used in dewatering, they ensure dry, safe working conditions, even in deep water tables. For bypass, they are used to safely redirect water flows. In sewer over pumping, high head pumps will sustain pressure while handling solids and variable viscosity.

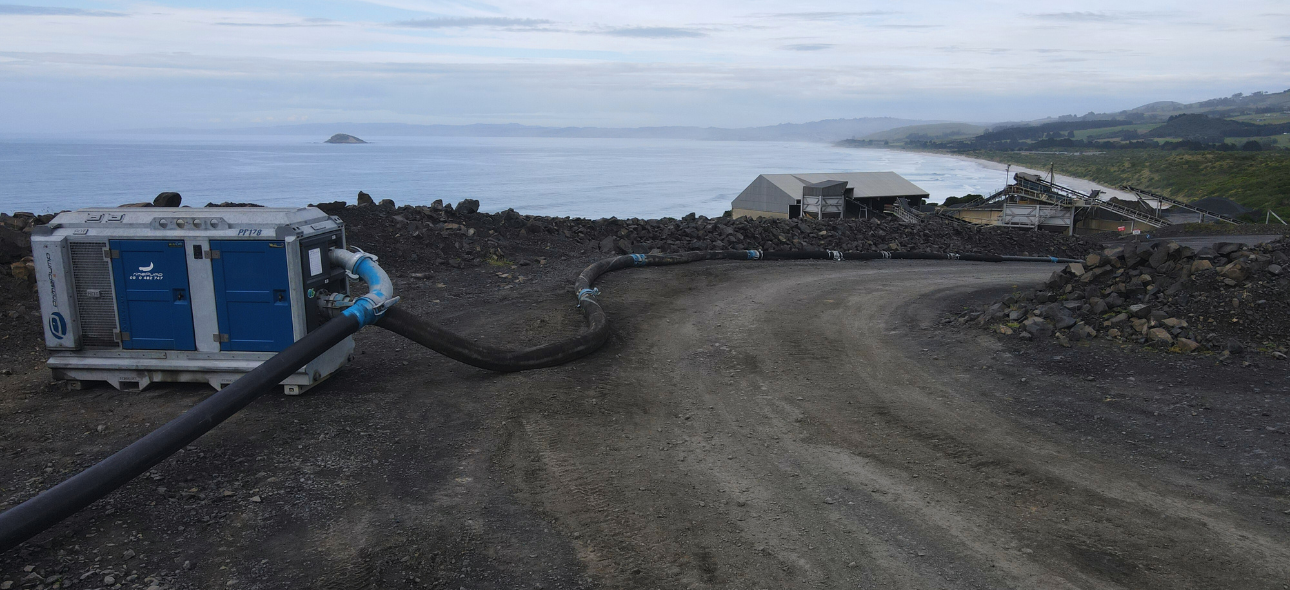

SURFACE-MOUNTED PUMPS

BBA High Head Solutions

BBA Pumps’ BA Series of vacuum assisted auto prime pumps deliver pressures of up to 20 bar (290 psi) in a compact, mobile solution: - electric or diesel drive - skid frame optional - silenced canopy optional

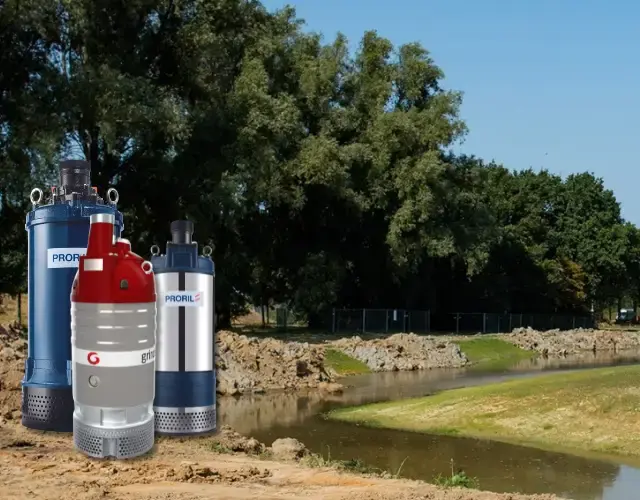

SUBMERSIBLE PUMPS

Power-up under water

Our Grindex and Proril brands include high-head ranges with features such as: - run-dry capability (Grindex) - patented leakage-preventing seals - phase-failure guards - SMART motor protection technology - zinc anodes

Overview of our High Head Pumps

BBA Diesel High Head

A compact pump offering pressures up to 20 bar (290psi), available with Stage V diesel engine. Use in tank cleaning/ wellpoint jetting/ underwater excavation.

Size: 76mm
Max flow: 110m³/hr
Max head: 105mwc
Max solids: 25mm

Find DataSheets

BBA Electric High Head A compact pump for challenging sites where height, distance and environment demand non-standard solutions.
Available open frame or sound-attenuated.

Size: 76mm
Max flow: 110m³/hr
Max head: 115mwc
Max solids: 25mm

Find Datasheets

Axis Diesel High Head

Combining vacuum assistance and impeller efficiency for reliable fluid handling.
Used when significant suction lifts and discharge pressure is required.

Size: 75mm - 400mm
Max flow: 3250m³/hr
Max head: 115mwc
Max solids: 25mm

Grindex Drainage Submersibles Rugged, lightweight, run-dry electric submersibles.

Size: 50mm - 254mm (2” – 10”)
Max flow: 350L/s
Max head: 200m
Max Solids: 12mm

Find Datasheets

Proril Drainage Submersibles Durable submersible series designed for optimal reliability.

Size: 50mm – 203mm (2” - 8”)
Max flow: 110 l/sec
Max head: 90m

Find DataSheets

Pipes & Hoses We stock a range of HDPE pipe, layflat and suction hoses and accessories and will advise on the product that best-suits your application.

Accessories Prime Fluid Management holds stock of a wide range of quality fittings and dewatering accessories.

Bauer Fittings & adapters
Strainers
Fuel tanks & generators

GALLERY

In the field

Here are some examples of our solutions being used.

Talk to us today

They brought their mechanics, they didn't just dump it and leave….couldn't have done it without them to be honest

Mark CadwalladerCatchment Worker

This sort of unique system you set up is what sets you apart from others in the Market

Jacob Warmsley Project Manager

I had an amazing experience with Prime Pump at the Transmission Gully ... will recommend you guys anytime and anywhere.

Peter FisherDirector

You guys had our backs from the get-go and stood beside us and persevered.

DaveOps Director

We called for a different type of solution…... We were pretty happy with what's been delivered

Rob KerrProject Director

Prime supplied us with the best solution for hire and the instant availability was what we needed… We certainly will be using them in the future

Priscilla EllmersWastewater Supervisor

Let’s sort your fluid management needs
Speak to an expert

Duncan Moore
Sales Engineer

Phone

William Filleul
Sales Engineer

Phone

Ambrose Holt
Hire Account Management

Phone

Questions

FAQ

At Prime Fluid Management, we understand that every fluid management challenge brings unique considerations. Here, you’ll find clear, practical answers and expert guidance to help you maximise uptime, achieve regulatory compliance, extend equipment life, and implement the most effective solution for your site.

Do you supply oil transfer pumps that can meet API 676 requirements?

Some positive displacement internal gear pump ranges are manufactured to API 676, with specific exceptions depending on the model. If API 676 compliance is part of your specification, we can confirm suitability during selection and provide the relevant documentation.

What’s the best oil transfer pump in NZ for diesel, fuel oil, or lubricating oil?

The best option depends on viscosity, temperature, and whether you need steady metered flow or high throughput transfer. For many industrial oils and fuels, internal gear and external gear pumps are common choices because they provide consistent flow and handle higher viscosity fluids well.

Can these pumps be specified for hazardous areas?

Yes, hazardous area options may be available depending on the selected pump and motor package. For example, some equipment ranges offer certified IECEx hazardous area rated configurations, which can be specified when the site classification requires it – including suitable options for Zone 1 and Zone 2 hazardous areas.

Do you need flooded suction, or can the pump run on suction lift and self priming?

It depends on the fluid, temperature, viscosity, and how the tank and pipework are laid out. A flooded suction setup is usually the most stable option for consistent performance, especially with higher viscosity oils, because the pump is always supplied with product.

If the pump needs to draw from a lower level or from a longer suction line, suction lift and self priming capability become important. However, the setup needs to be sized correctly to avoid issues like poor priming, air ingress, or cavitation. If you share your suction conditions and duty point, we can recommend a pump type and configuration that suits the installation.

What features help protect the pump and improve reliability on fuel and oil duties?

For fuel and oil applications, reliability often comes down to protecting the pump from pressure spikes and contamination, and selecting the right sealing arrangement. Depending on the pump type and duty, options can include an internal relief or bypass valve to protect against dead heading, and an inline suction strainer to reduce the risk of damage from debris.

Seal selection also matters for demanding services, with configurations such as double mechanical seals used on certain duties where additional containment or reliability is required. We can guide you on what features make sense based on the product, operating conditions, and site requirements.

What information do you need to specify a fuel transfer pump in NZ?

To specify the right fuel transfer pump for a New Zealand site, we typically need the fuel type, required flow rate, temperature, and viscosity, along with suction conditions such as flooded suction or suction lift.

Once we have those details, we can confirm the most suitable pump type and configuration for your application – including options for heavier fuels where viscosity is higher.
