GVR Gear Pumps
High-viscosity industrial fluid transfer solutions.
Versatile and Reliable Gear Pumps for Industrial Fluids

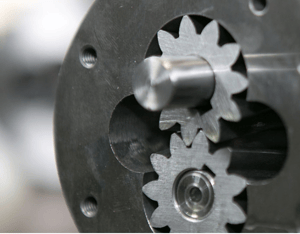

GVR self-priming, positive displacement external gear pumps transfer medium-to-high viscosity fluids containing no suspended solids. These pumps deliver a fixed volume per shaft revolution, with output not greatly affected by pressure. Available in cast iron, bronze and stainless steel for diverse gear pump applications: waste oil disposal, transport and treatment, power plants, turbines and generators, metals processing, animal feed and food processing, tanks, silos, plants, chemical dosing, polyurethane machinery, paint manufacture and printing machines, and firefighting systems.
GVR Pompe
Technology, reliability and people

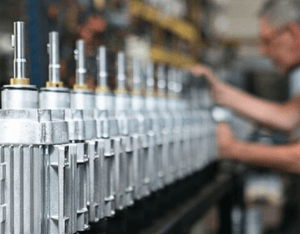

GVR Pompe is a family-owned business based in Italy, specialising in positive-displacement volumetric gear pumps since their inception in 1958. As experienced gear pump manufacturers, the business places heavy emphasis on Research and Development, creating reliable, wear-resistant pumps designed to perform across multiple industries.
Certifications
Quality Assurance
GVR products are manufactured according to the Machinery Directive and in accordance with ISO 9001:2015 Quality System. Certification and product standards include: CE Certification (Machinery Directive 2006/42/EC), UNI EN ISO 2001:2015, Atex Certification on request (Machinery Directives 2014/34/EU, 99/92/EC).
Overview of our GVR Gear Pumps
APF High Pressure Gear Pumps
Volumetric self-priming gear pumps that deliver sustained performance at higher pressure. Available in cast iron steel shafts and gears as standard.
- Viscosity: Up to 1,000 cSt
- Flow rate: 5-80L/min
- Max. pressure: 25 bar
BMF Three-phase Monobloc Gear Pumps
Compact, efficient and designed for continuous operation in typical applications. Available in cast iron; bronze and AISI 316 stainless steel.
- Viscosity: Up to 1,000 cSt
- Flow rate: 2-70L/min
- Max. pressure: 12 bar
BCF Single-phase Monobloc Gear pumps
Compact and strong like its BMF-range siblings, the BCF range is suits use cases where continuous operation is not required
- Viscosity: Up to 1,000 cSt
- Flow rate: 2-70L/min
- Max. pressure: 12 bar
BFC Bell-coupling Gear Pumps
Designed with bell housing and coupling to fit an industrial electric motor. Available in cast iron, bronze and AISI 316 stainless steel.
- Viscosity: Up to 1,000 cSt
- Flow rate: 2-70L/min
- Max. pressure: 12 bar
B-Series Bare Shaft Gear Pump
Gear pump with bare shaft and feet mounting typically installed on a skid and driven by a B3 electric motor. ATEX version available.
- Viscosity: Up to 20,000 cSt
- Flow rate: 5-800L/min
- Max. pressure: 12 bar
BC Bare Shaft Gear Pumps with Heating Chamber
A bareshaft gear pump with heating chamber integrated into the pump housin. Use when pumped liquid requires heat to prevent hardening. ATEX models available.
- Viscosity: Up to 20,000 cSt
- Flow rate: 10-400L/min
- Max. pressure: 12 bar
MBM Skid-mounted Gear Pumps
GVR’s B-Series pumps mounted on a skid with pump base and driven by a B3 electric motor via a coupling. Atex models available.
- Viscosity: Up to 20,000 cSt
- Flow rate: 5-800L/min
- Max. pressure: 12 bar
- Material: Cast iron, bronze, s/s AISI 316
IF Low Viscosity Gear Pumps
Used to transfer chemical products and low viscosity media where low flow and high pressure are required.
- Viscosity: Up to 1,000 cSt
- Flow rate: 5-25L/min
- Max. pressure:25 bar
- Material: Stainless steel AISI 316
Industrial Pumps Servicing & Parts
Prime Fluid Management supplies genuine parts for our pump brands, holding stock of common wear parts in New Zealand.
- Genuine parts
- Stock held in NZ
- Maintenance advice
- Servicing on request
